Product Details:
|
Wattage: | DC 24V (8mm PCB) | Color Temperature: | 3000k 4000k 6000k ( 1000lm/m) |
---|---|---|---|
Power Suppley: | 10-12 Watts ( 320leds/m) | Length: | 5 Meters /10 Meters Per Roll |
Highlight: | 320LED/M COB LED Strip Light,2700K COB LED Strip Light,24V Dot Free LED Strip Lights |
180 Angle Flexible Led Cob Strip Light 24V 320led/m 2700k Warm White Dot Free Cut Anywhere Addressable Bounding Wall
Product Introduction:
Flexible COB LED Strip Light is a new design type of led strip products.
As the led strip is by SMD LED+ FPC, so there must with some light dot or spot.
Now this COB strip is take the flip chip technical to bonding the chip directly on the FFR board and then cover it by phosphor & silicone gel directly, so the color is even and without any light dot or light spot, 180 degree big view angle.
Available in DC12V/DC24V, 2700+6500K dual white color, can meet your needs for Room TV backlight decoration.
Paramenters:
Model No. | RYFCOB-320 |
LED Qty | 320 led per meter |
Three width of PCB | 8mm/10mm |
Color Temperature | 2700K 3000K 4000K 6000K |
CRI (Ra>) | Ra 90 |
Wattage | 6mm 12V(6W) 24V(8W)
8mm 12V(8W) 24V(10W) 10mm 12V(10W) 24V(14W) |
Cutting Length | 50mm Minimum Length |
Waterproof Rate | P20/IP65/IP67 |
Advantages:
1.Widely used, easy to be installed and be maintained for a long service life
2.Very flexible, easy to be bended into different shapes, various white light options
3.COB design, with more chips on PCB, more even lighting.
4.Up to 320 chips on 1 meter PCB, only 2.0mm space between chips.
5.Cuttable at every 50mm length. Form a circuit without affecting other circuites.
6.Efficiency up to 100Lm/W.
7.Ra 90 also available.
8. Can be customized according to customer requirements

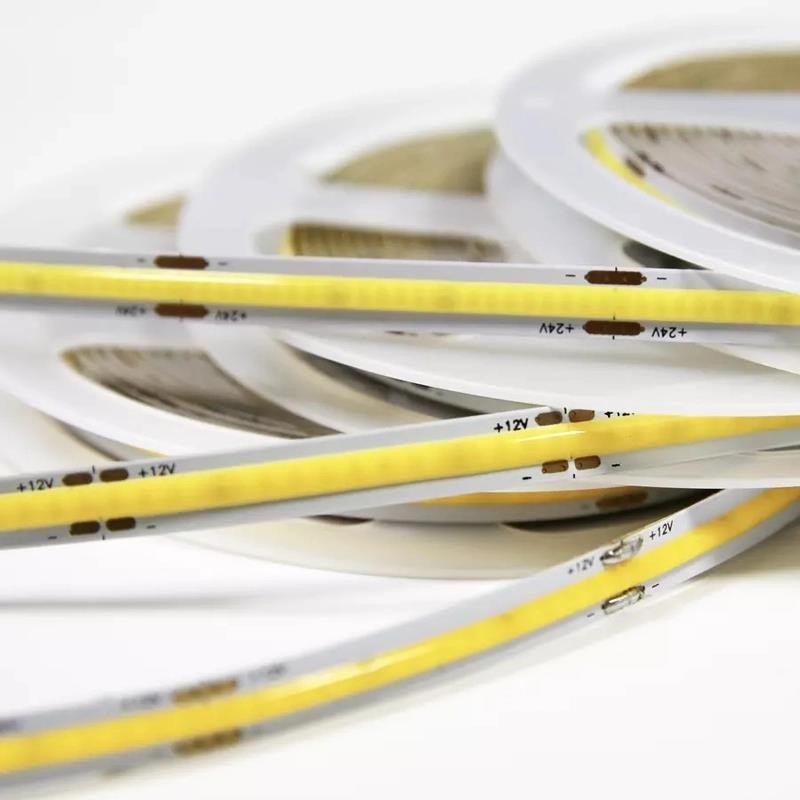

Product Photo
