Product Details:
|
| Name: | Cob Led Strip 480led/m | RA: | 90 |
|---|---|---|---|
| CCT: | 3000K, 4000K,6000K, Red, Green, Blue, Yellow | IP Rate: | IP20, IP65, IP67 |
| Illumination Angle(°): | 180 Degree | Warrant: | 2 Years |
| Highlight: | Multi Scene COB LED Tape,2mm COB LED Tape,Home COB LED Flexible Strip Lights |
||
Flexible COB LED Strip Light 480 Chips 3000K 4000K 6000K 3m Adhesive 90RA For Home Decoration
Product Introduction:
COB led strip is a high density led strip using chip-on-board packaging technology. It has a wide 180 degree beam angle, high density LED with no dark area, high color efficiency, and uniform illumination. It uses double layers PCB, which ensures low voltage drop and good heat dissipation. It is extremely flexible, can be bent freely. Low power consumption, energy saving. With 3M adhesive tape on the backside, which makes the COB led strip easy to install and preserve. All of materials are accord with RoHS and CE standardsAvailable in 320led/ 480led/528led/576led/640led per meter, accept your OEM colors, pcb and other information.
| Part number |
WES-FCOB-320 |
WES-FCOB-384 | WES-FCOB-480 | WES-FCOB-504 | WES-FCOB-528 |
|
LED Quantity |
320 pcs/meter |
384 pcs/meter | 480 pcs/meter | 504 pcs/meter | 528 pcs/meter |
|
PCB width |
6mm/8mm/10mm |
8mm | 8mm/10mm | 10mm | 10mm |
| Color temperature |
2700K 3000K 4000K 6000K |
2700K 3000K 4000K 6000K |
2700K 3000K 4000K 6000K |
2700K 3000K 4000K 6000K | 2700K 3000K 4000K 6000K |
| RA |
90 |
90 | 90 | 90 | 90 |
| Wattage |
6mm 12V(6W) 24V(8W) 8mm 12V(8W) 24V(10W) 10mm 12V(10W) 24V(10W) |
10W |
8mm 12V(8W) 24V(10W) 10mm 12V(10W) 24V(14W) |
12V(12W) 24V(14W) |
14W |
| Cutable Length | 50mm |
41.66mm |
50mm | 50mm | 45.45mm |
| IP Rate |
IP20/IP65/IP67 |
IP20/IP65/IP67 | IP20/IP65/IP67 | IP20/IP65/IP67 | IP20/IP65/IP67 |
Advantages:
1. Reliability
COB strip adopts the flip chip and flip packaging technology, better reliability
2. Better color uniform
One time silicone molding process, which can meet SDCM 3
3. Better products design
Thinner, only 2mm thickness, which is more convenient for product design
4. Easy installation
It adopts the integrated package technology; the resistor and the flip chip are bonded together, more easily to assembly
Application:
1. Architectural decoration Lighting
2. Backing lighting for signage letters
3. Decoration lighting for under water project
4. Archway /Canopy & Bridge Edge Lighting
5. Auditorium walkway lighting
6. Amusement park / Theater lighting
7. Stairway Accent Lighitng
8. Channel letters lighting
9. Furniture Decoration Lighting
10. Cove Lighting etc.

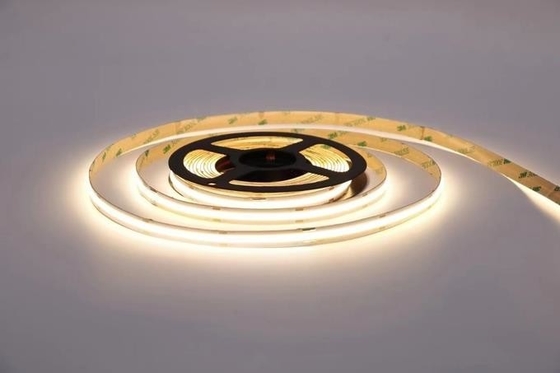

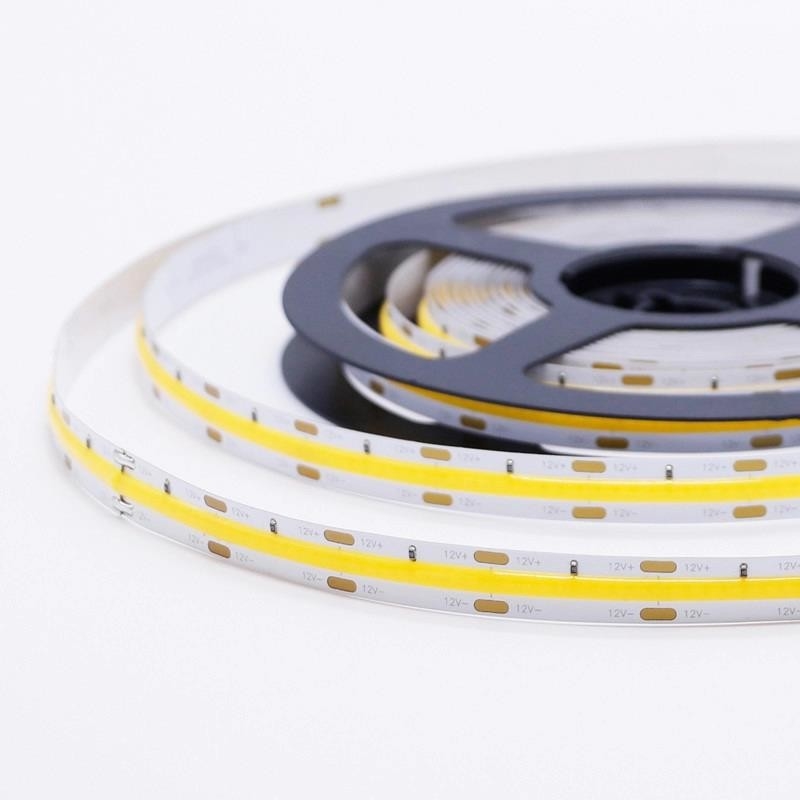

Product Photo
