Product Details:
|
| Wattage: | 12~14W | RA: | 90 |
|---|---|---|---|
| CCT: | Red, Green, Blue | Luminous Intensity: | 100~110lm/w |
| Illumination Angle(°): | 180 Degree | Control: | Remote Control, Switch Control |
| Hight Light: | 320Led COB LED Strip, 24V COB LED Strip CE, 110lm/w Flexible COB LED Strip | ||
| High Light: | Multicolor Addressable COB LED Strip,Switch Control Addressable COB LED Strip,8mm Digital LED Strip Light |
||
Addressable Cob Led Strip Light Digital Cut Anywhere 24V 320 leds 8mm PCB 3000K Flexible 1000lm/m
Product Introduction:
COB led strip is a high density led strip, use chip-on-board packaging technology. Our company has leading technology for COB LED strips, our full series COB strip including 320LED, 384LED, 480LED, 504LED, 528LED COB, 576LED CCT, 630LED RGB color, etc. It has a wide 180 degree beam angle, high density LED with no dark area, high color efficiency, and uniform illumination. Exept for regular 2700K, 3000K, 4000K, 6000K CCT, we can also help to make custom colors, such as Red, Green, Blue, Yellow...We can customzie your own information on the product.
Parameters:
| Part number | RYCOB-320 | RYCOB-480 |
| LED Quantity | 320 pcs/meter | 480 pcs/meter |
| PCB width | 8mm/10mm | 6mm/8mm/10mm |
| Color temperature (CCT) | 2700K 3000K 4000K 6000K Red, Green, Blue, OEM |
2700K 3000K 4000K 6000K Red, Green, Blue, OEM |
| RA | 90 (80 optional) | 90 (80 optional) |
| Wattage | 8mm 12V(8W) 24V(10W) 10mm 12V(10W) 24V(10W) |
6mm 12V(6W) 24V(8W) 8mm 12V(8W) 24V(10W) 10mm 12V(10W) 24V(14W) |
| Cutable Length | 50mm | 50mm |
| IP Rate | IP20/IP65/IP67 | IP20/IP65/IP67 |
Advantages of 320leds COB strip:
1. Widely used, easy to install and maintain, long service life
2. Very flexible, easy to bend into different shapes, various white light options
3. COB Design, with more chips on PCB, more even light.
4. Up to 480 chips on 1 meter PCB, only 2.0mm space between chips.
5. Cuttable at every 50mm length. Form a circuit without affecting other circuites.
6. Efficiency up to 100Lm/W.
7. Ra 90 also available.
8. Can be customized according to customer requirements
Application:
1. Commercial and residential decoration
2. Under counter lighting
3. Media illumination
4. Large area backlighting
5. Small to medium channel letters
6. Point-of-sale displays
7. Neon replacement

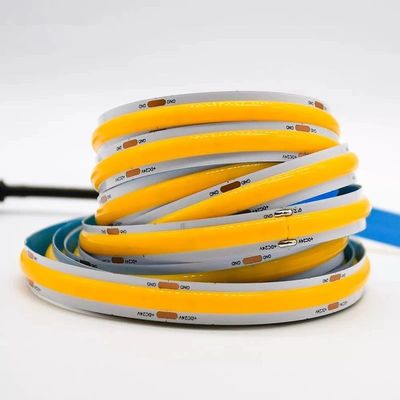

Product Photo
